INCLINED PLATFORM LIFTS

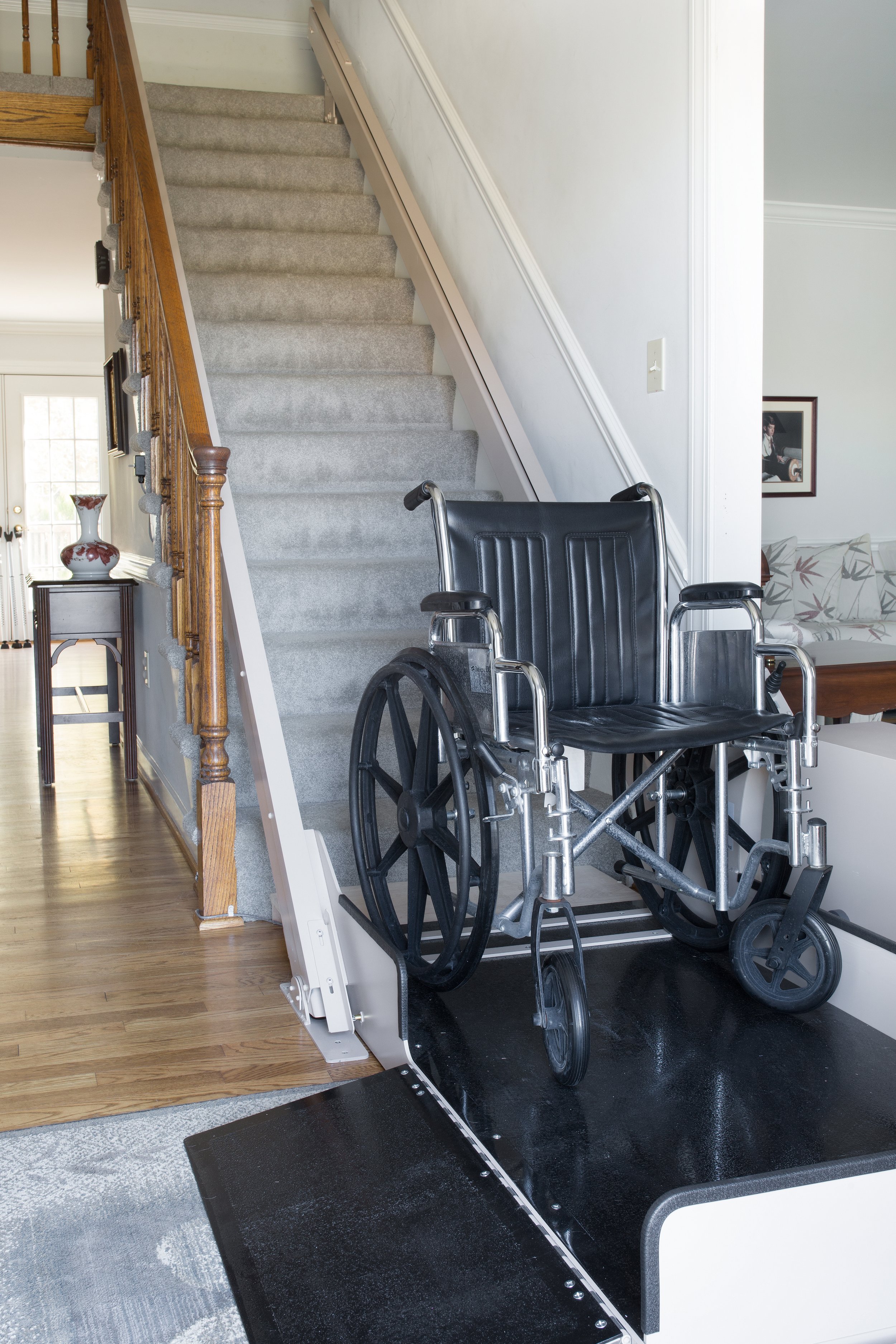

Butler Mobility’s Inclined Platform Wheelchair Lifts are manufactured in Pennsylvania, USA, are custom built to your size specifications and needs, and are easy to install and maintain. No structural modifications to the home are required to install our lifts, nor will the lift block the stairway. Our inclined platform lifts are ADA-compliant and meet or exceed all National Safety Code (ANSI/ASME code) requirements. All electrical components are UL®certified, and the unit requires only standard household current and a dedicated standard outlet. Our power transmission has been certified by Met Laboratories, Inc. to ASME A 17.5 /CSA B44.1-11 meeting approved standards for Elevator and Escalator Electrical Equipment. The Butler Mobility inclined platform lift is certified to lift 750 lbs (350 kg) capacity.
In the event of a power failure, the standard battery backup will bring the platform up and down as many as 5 times, depending on the age of the battery, the height, and the load, so the user is never left stranded. Our IPL comes with a standard 5 year warranty on all parts.
Wheelchair Lift Safety Features

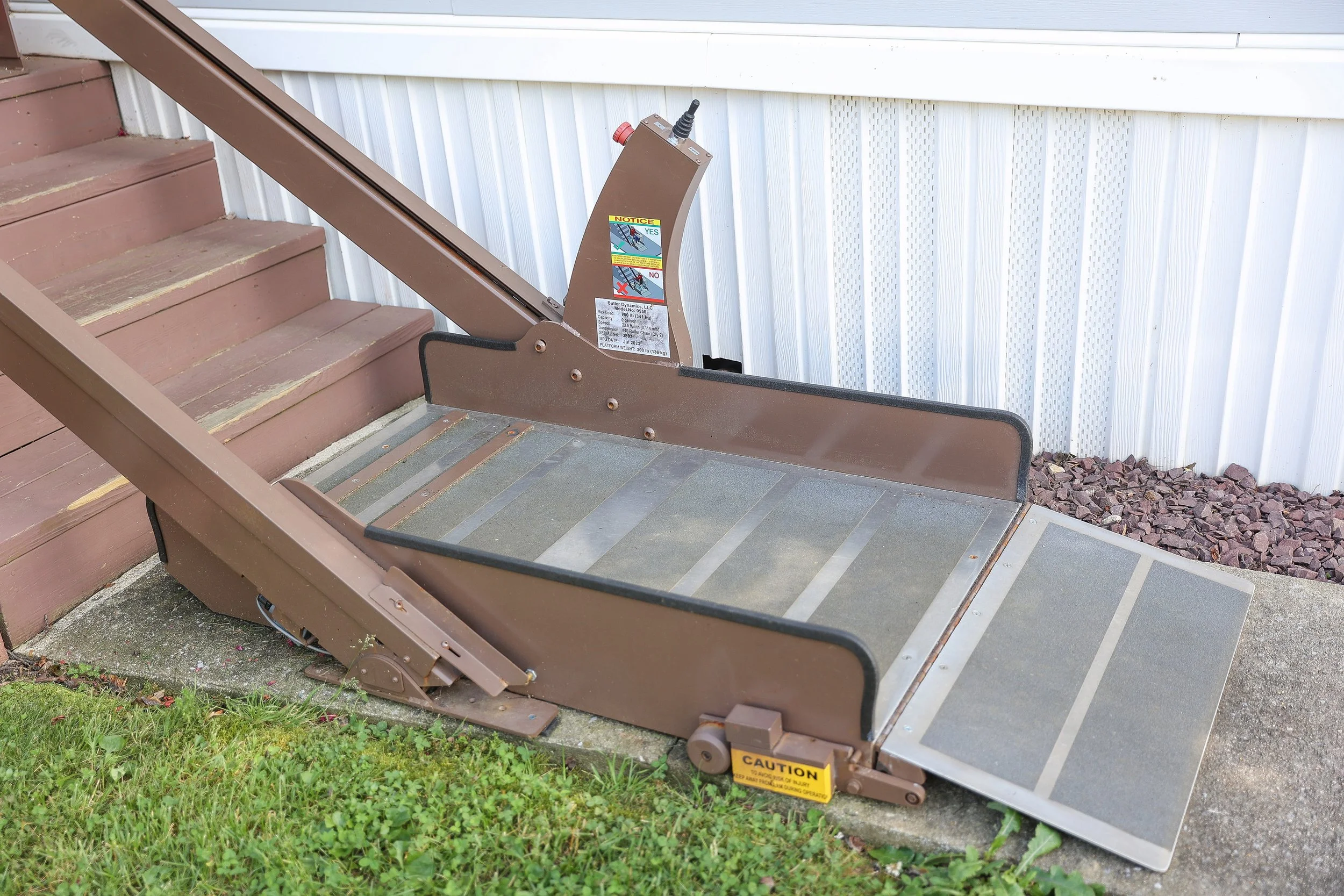

Our Inclined Platform Wheelchair Lifts can be equipped with an automatic front or side folding ramp and guard that locks firmly in place during operation.
– Each wheelchair lift has an emergency stop button standard.
– Battery backup is standard.
– Optional key-operated controls provide additional safety.
– Slack/broken chain safety.
– Redundant platform safeties.
– Platform safety apron.
– Over speed governor.
– Upper and lower limit switches.
– Over travel safety switch.
– Safety clutch.
All Inclined Platform Wheelchair Lifts have three directional switches, all within easy reach of the user. One on the platform, another at the upper landing and another at the bottom landing. Keyed controls are also available at a small additional cost. All switches are “momentary” (constant pressure) to meet safety code requirements.
Installation and Service

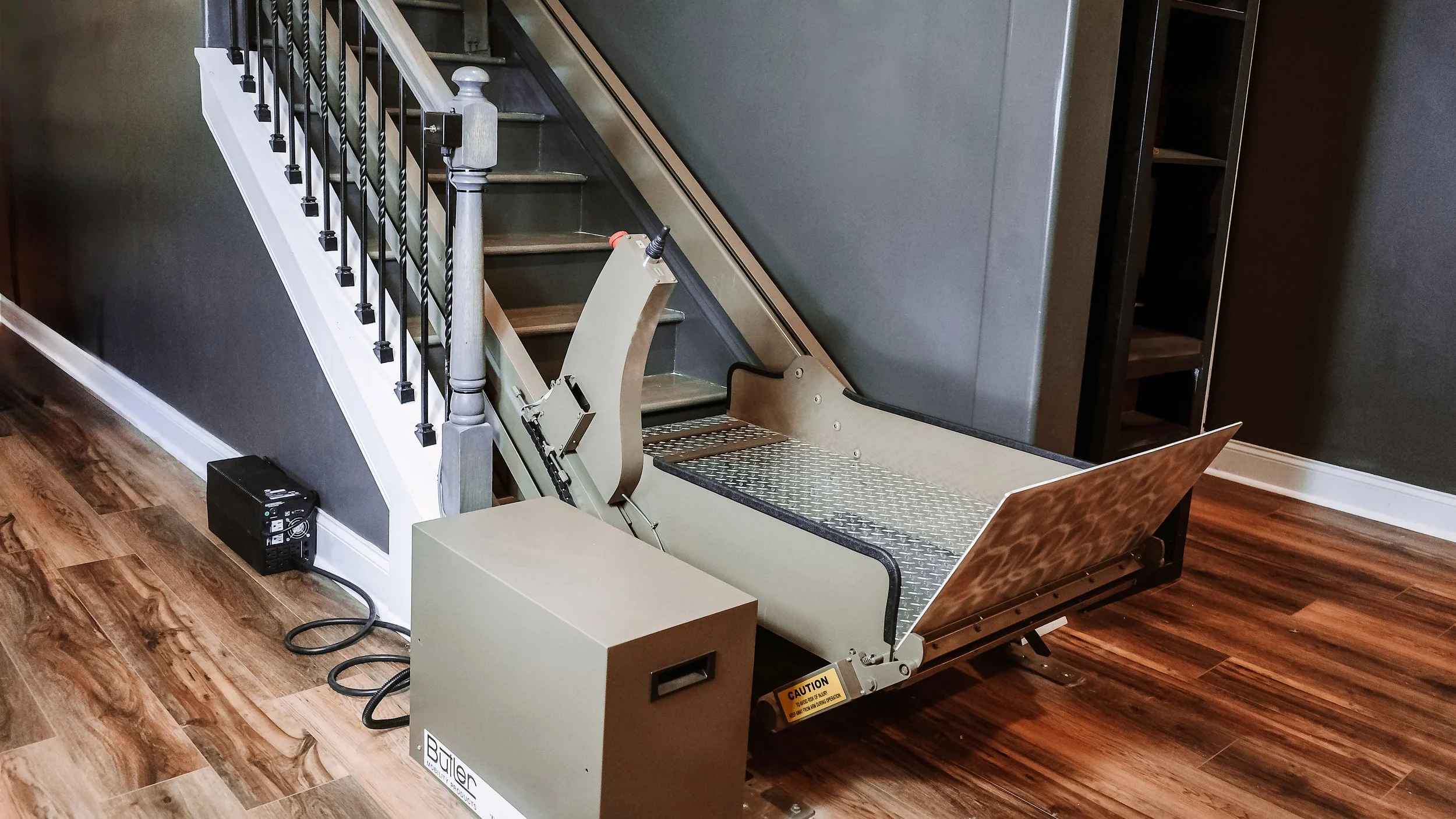

Butler wheelchair lifts are designed for installation that couldn’t be easier or less invasive. The rails attach at the top and bottom of the stairs with no modifications needed to walls. The power unit is located at the bottom of the stairway and can be placed either on the right or left hand side of the stairs depending upon space restrictions. A through wall kit is available to place the power unit through an adjoining wall, or a remote power unit extension can re-locate the power unit to a more suitable location near the stairway.
We back our inclined wheel chair lift products with a five-year limited warranty, as well as nationwide customer service and maintenance either direct with Butler Mobility or through one of our authorized dealer/installers.
Comfort and Convenience
Each of the two rails on our Inclined Platform Wheelchair Lifts take up just four inches of stair width when the unit is not in use, ensuring the safety and convenience of family members and others traversing the stairs.
The Butler Inclined Platform Wheelchair Lift is also designed with appearance and functionality in mind. All the working mechanisms are concealed to offer a seamless, attractive appearance and optimum safety in the home.
Butler Wheelchair Lift models are offered in five new beautiful earth tone colors at no additional charge. These colors will not only blend well in the home but will enhance the beauty of the stairway.
Custom coatings are also available at a small additional charge.
Platform Finish Options
The platform and ramp are available in a beautiful brushed aluminum finish. The entire platform is enhanced with a skid resistant material. This material, chosen by the customer, can be either 6″ skid resistant tape or a black high performance anti slip epoxy from Slip Doctors.
Fill out the form below or call us toll-free at 888-847-0804
Colors may vary slightly due to the differences in electronic screens. See your local dealer for color palettes.
A deep rich brown
A beautiful medium silky brown
A classic blend of creamy brown with a muted gray/green tint
A striking gray with blue tint
A deep rich beige
