VERTICAL PLATFORM LIFTS

Butler Mobility Products provides and installs vertical platform lifts manufactured by RAM Elevators and Lifts. This line of vertical platform lifts is safe, reliable and easy to operate. We can provide a vertical lift for practically any accessibility need: residential, commercial, indoors, outdoors, porch, enclosed, portable or a home elevator lift.

RAM products are designed to provide best in class reliability of use. Options such as the “Tower of Power” can also ensure that the Lift is functional should your local power grid fail…don’t get stranded when it really counts.

EASY TO OPERATE

With patented “Soft Touch” controls RAM can support people with limited strength or difficulty in pressing small buttons. These controls make it easy to enjoy accessibility and aging in place.

WEIGHT CAPACITY

With up to 750lbs of capacity, RAM can support even the most robust powered wheelchairs.

SIZE

A vertical platform lift takes up far less space than a ramp and, by using an all-electric drive design, RAM can offer some of the most compact units on the market today. For specific sizes please see the technical information section.

TRAVEL HEIGHT

Every model can be configured to provide up to 14 feet of travel.

APPLICATION

Whether you are looking for a way to “age in place”, prevent falls, outfit your home to contend with a new challenge, or access your home in flood zones, RAM has the expertise, developed over the last 25 years to assist you.

QUIET

The Trus-T-Lift is designed to have one of the smoothest and quietest drive systems on the market. This system avoids belt squeal and avoids vibration noise by isolating the motor from the main drive screw.

ARCHITECTURAL BLENDING

If you want to have your lift blend in with your home or building, we offer custom colors that can help you achieve this goal.

Contact Us- Vertical Platform Lift

  • Fill out the form below or call us toll-free at 888-847-0804


Verification

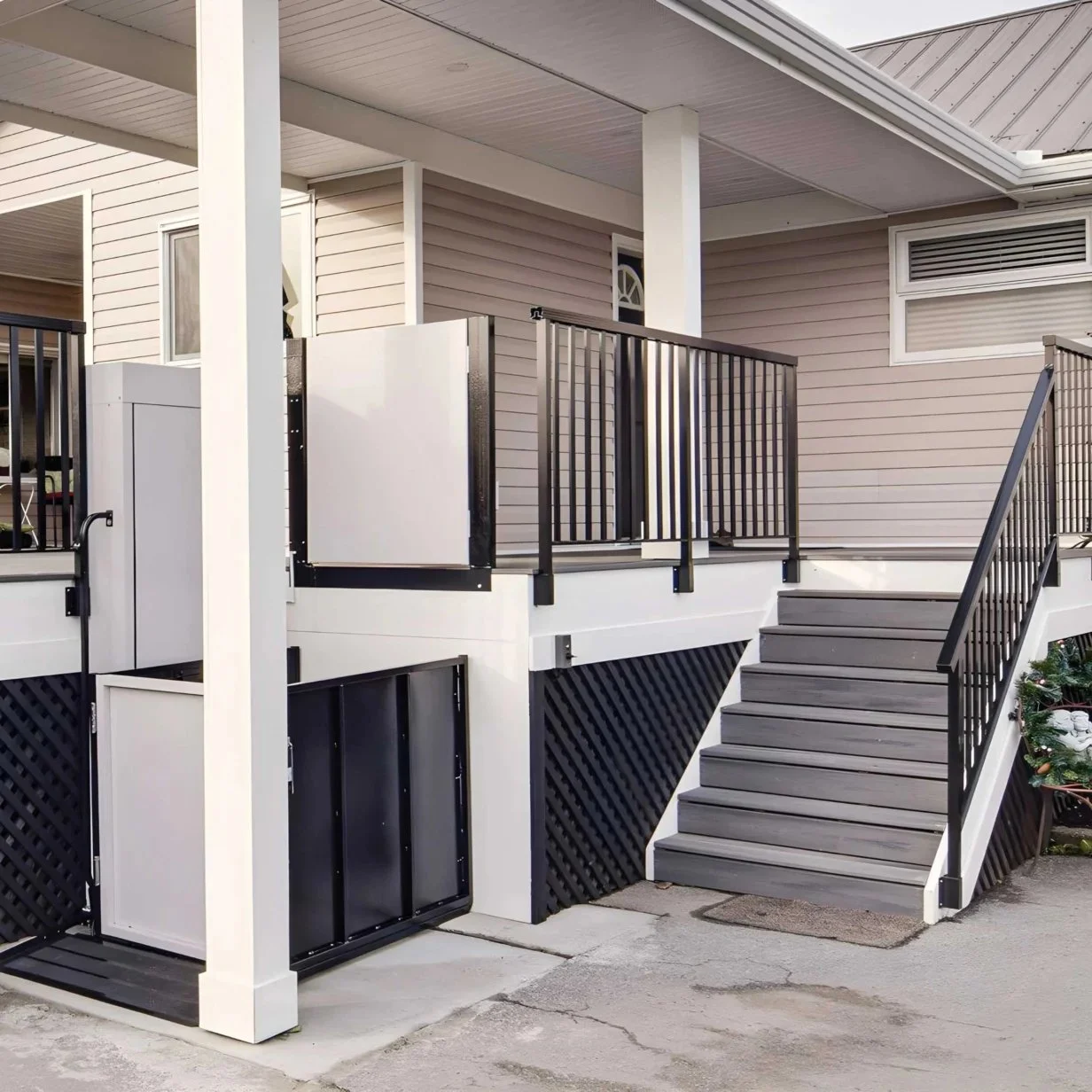

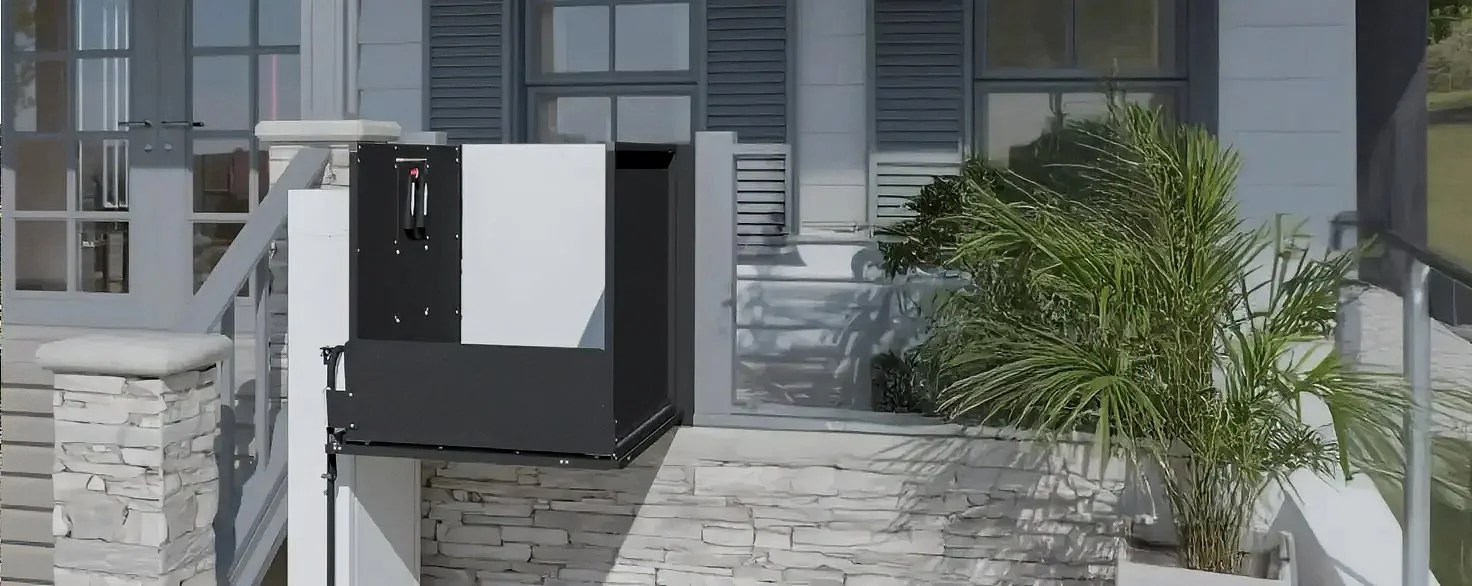

PORCH LIFT

Used for: garages, porches, decks, or other home access points
Small foot print for use in existing or new homes
Configured every time for optimal safety
Options to allow for calling and sending the platform

OUTDOOR LIFT

Perfect for accessing homes that are in flood prone or coastal areas.
Motor and all electrical mounted at the top so avoid any water issues
Perfect for accessing taller decks
Great for extreme heat and cold due to our patented Zero-Load Start Design

ENCLOSED LIFT

A perfect solution for getting between floors of a house (existing or new)
Multi-Stop Option available
Less costly than a full elevator
Can be installed with full height doors to ensure it does not compromise the attractiveness of your home
Hallow 2”in Pit or a Ramp for access at lowest landing
Can be retrofitted to your existing home or included as an option in a new home

PORTABLE LIFT

Highly useful in schools, churches, or at venues with stages where access is required only from time to time or in multiple locations
Non-permanent installation where temporary accessibility is required
Limited to 52” of travel
All the safety features built in to the standard Trus-T-Lift

Our Vertical Platform Lifts are designed to meet ASME A18.1/ CSA B613-0 / CSA B355 Safety Standards when properly equipped. While RAM VPLs meet national standards, it is imperative to check State and Local code requirements before installing to ensure compliance. All State and Local compliance is the responsibility of the purchaser.  Some states may require fees for site preparation and permits.

TECHNICAL INFORMATION

Tower Height

28” Lifting Height 50.5”
52” Lifting Height 74.5”
72” Lifting Height 94.5”
96” Lifting Height 120.5”
120” Lifting Height 144.5”
144” Lifting Height 168.5”
168” Lifting Height 192.5”

Straight Through Access Platform

Deck length: 54”
Deck Width: 34”
Total Width: 49”

Adjacent Access Platform

Deck length: 54”
Deck Width: 40”
Total Width: 54”

ADDITIONAL FEATURES

Our lifts are equipped with an automatically folding end ramp and guard that locks firmly in place during operation. In a power failure, an emergency hand crank transports the wheel chair lift smoothly and safely to the lower level.

Constant pressure Soft Touch control pads.
750 lb capacity.
8 feet/minute lift speed.
Direct Geared Belt Drive.
Non-load bearing back-up safety nut.
Low maintenance.
Non-skid platform surface for increased safety.
Pre wired – plug 110V/15A wall outlet.
Emergency manual operation.
• Control box accessible from carriage
• Durable powder coat finish
• U.L. and C.S.A. Certified
