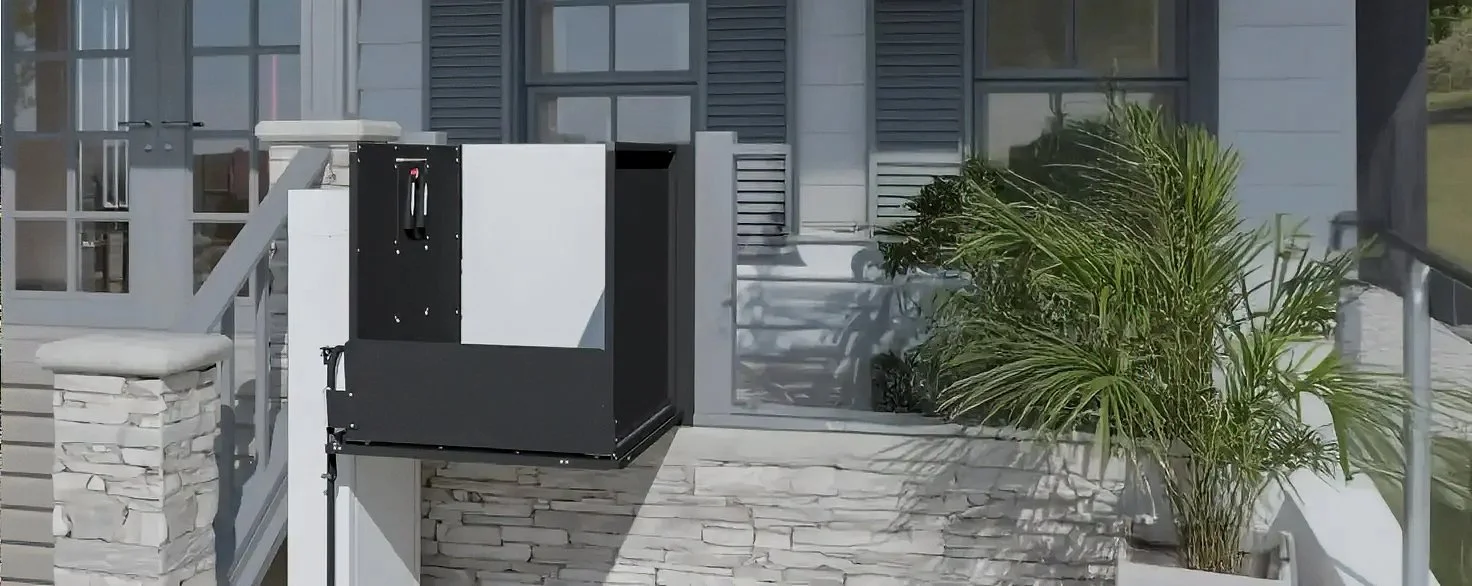

A Butler Mobility RAM vertical inclined platform lift in front of a porch and staircase to a home

The Flex Vertical Platform Lift

The Flex Vertical Platform Lift combines over 30 years of engineering innovation with smooth, user-friendly operation to enhance accessibility in both commercial and residential spaces. This cutting-edge wheelchair elevator features a compact footprint and is fully customizable to reach any height, making it ideal for indoor upper levels or outdoor decks. Engineered to endure the harshest environments, the lift features a durable powder-coated steel frame and a specialized open, see-through floor that simplifies maintenance in sandy, coastal areas. It is uniquely built to withstand extreme weather, reliably operating in unforgiving climates with temperatures dropping as low as 40 degrees below zero. This robust design, paired with expert installation, ensures a safe, reliable, and long-lasting accessibility solution that seamlessly improves daily mobility.

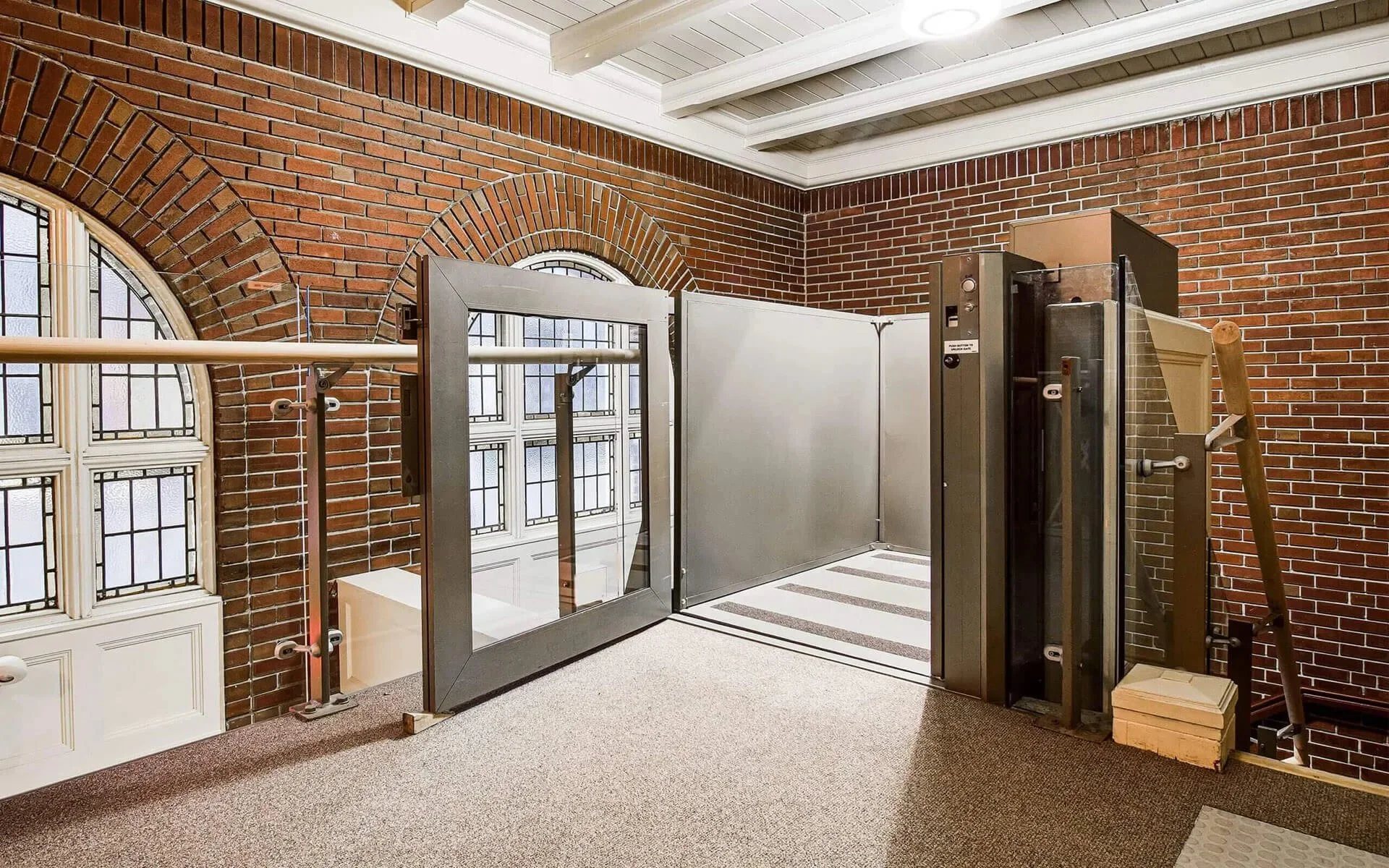

A Butler Mobility - RAM Flex vertical platform lift in a commercial building with brick walls

Features & Specifications

- Zero-Load Start Design
  RAM’s patented zero-load-start design allows the motor to reach full speed before lifting the load. This unique feature allows for full functionality during extreme weather and extends the life of all power & drive components.
- Soft Touch Paddle
  The patented RAM Soft Touch Paddle controls are oversized and responsive, allowing users to get moving with ease.
- Total Customization
  The Flex VPL is a versatile lift system offering flexible sizing and configurations. It features customizable options like colors, handrails, push buttons, and safety devices. It can also be tailored for three-stop configurations and varied entry/exit layouts to meet specific space and accessibility needs.
- Easy to Install
  The Flex Lift comes with easy to maneuver components that can be assembled quickly with minimum site preparation.
- All-Electric Drive System
  RAM’s field-proven electric drive system is reliable, powerful, and whisper-quiet. Plus, no hydraulic fluid = no harsh smells.
- Limited or No Pit Required
  Choose a pitless build with an 18” toe plate ramp, ideal for existing spaces, or a 2” pit for flush access.
Lifting Capacity: 750 lbs
Travel Speed: 8 ft/minute
Entry/Exit Options: Straight through, 90 degree access, in-out same side
Platform Sizes & Footprint
- Straight Through Platform:
  Platform Size - W36" x L48"
  Total Footprint w/ Tower - W52.5" x L48"
- 90 Degree Access Platform:
  Platform Size - W42" x L48"
  Total Footprint w/Tower - W56" x L48"
Manual
Residential Brochure
Commercial Brochure

Certifications

At Butler Mobility, transparency builds trust. That is why we provide the strict safety standards, certifications, and industry memberships behind the RAM products we supply. We believe our clients deserve full clarity on the safety, reliability, and superior performance of their lifts.
