Heavy-Duty Anchor Pro Pool Series Mounting Hardware
The Ranger 2 Lifts use a four-point anchoring system. We offer kits for typical concrete pool decks, paver applications, wood deck applications, and a quick attach concrete deck version to quickly and easily remove the lift from poolside without the need for tools. All kits include four inserts, a jig plate to hold them all at the proper distance, a bonding lug, all hardware to secure the inserts to the jig plate, and hardware to secure the lift to the anchors when installed.
NOTE: These kits may be used for many older models like the Pathfinder, Pro Pool Lift and Ranger. Check with our service department before ordering to make sure the bolt pattern matches your lift.
-

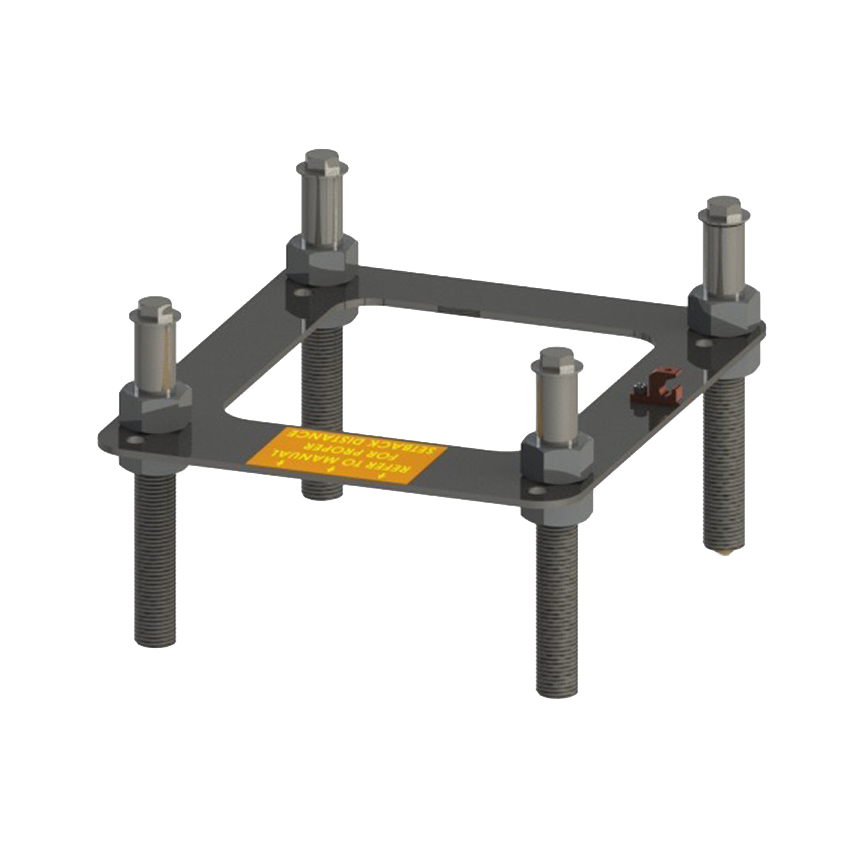

The F-04CAJP Pro Series Standard Anchor is for your typical concrete pool deck applications. The kit includes 4ea, 4-in long, machined, stainless steel threaded inserts, a jig plate to keep the anchors at the proper distance, a bonding lug, mounting hardware, and plastic caps to place in the top of the inserts when the lift is removed from poolside.
The F-08CAJP Pro Series Paver Anchor is typically used for paver applications where pavers are on top of a concrete footing. The longer machined threaded inserts stand proud of the footing at the height you determine based on your paver thickness. Pavers can then be cut to fit around the inserts. Kit includes 4ea, 8-in long, machined, stainless steel threaded inserts, a jig plate, bonding lug, mounting hardware, and plastic caps to place in the top of the inserts when the lift is removed from poolside.

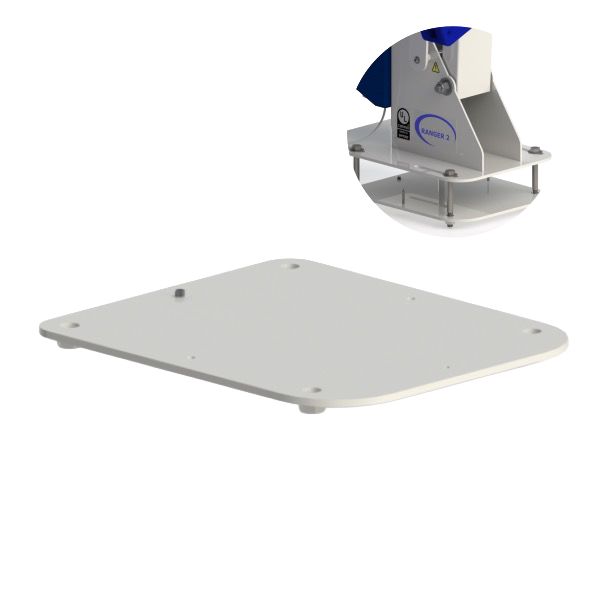

The F-40220-AT1 Pro Series Wood Deck Anchor kit was designed to allow the Ranger 2 and Admiral Lifts to be mounted to a wood deck. This item is powder coated stainless with threaded nuts welded in place on the back side of the plate to receive the lift mounting hardware. Comes with a bonding lug.

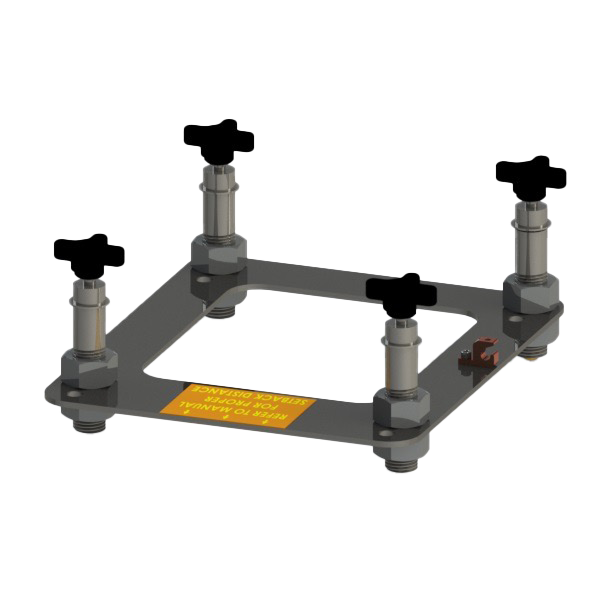

The F-046QAB-AT1 Quick Attach Anchor kit includes all the features of the F-04CAJP anchor kit but instead of having mounting bolts that require a wrench to secure the lift to the anchor, this comes with Tri-Star knobs that allow for quick removal and installation of the lift without the need for tools.

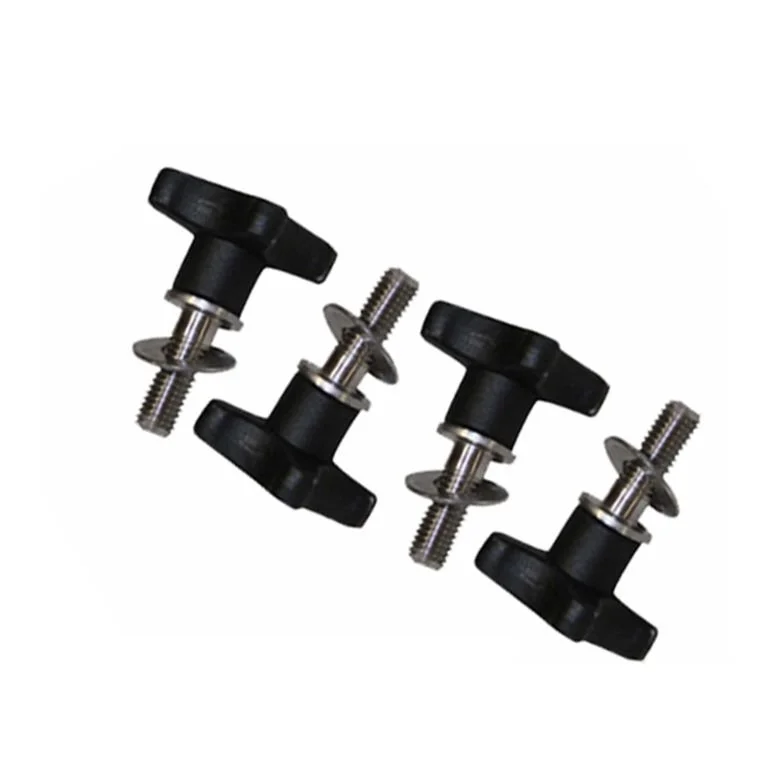

The F-JCL-114 knobs can be ordered separately as replacements for the F-046QAB-AT1 anchor kit or they can be added to the other kits to allow for a quick attach option in those other applications.
-
-
