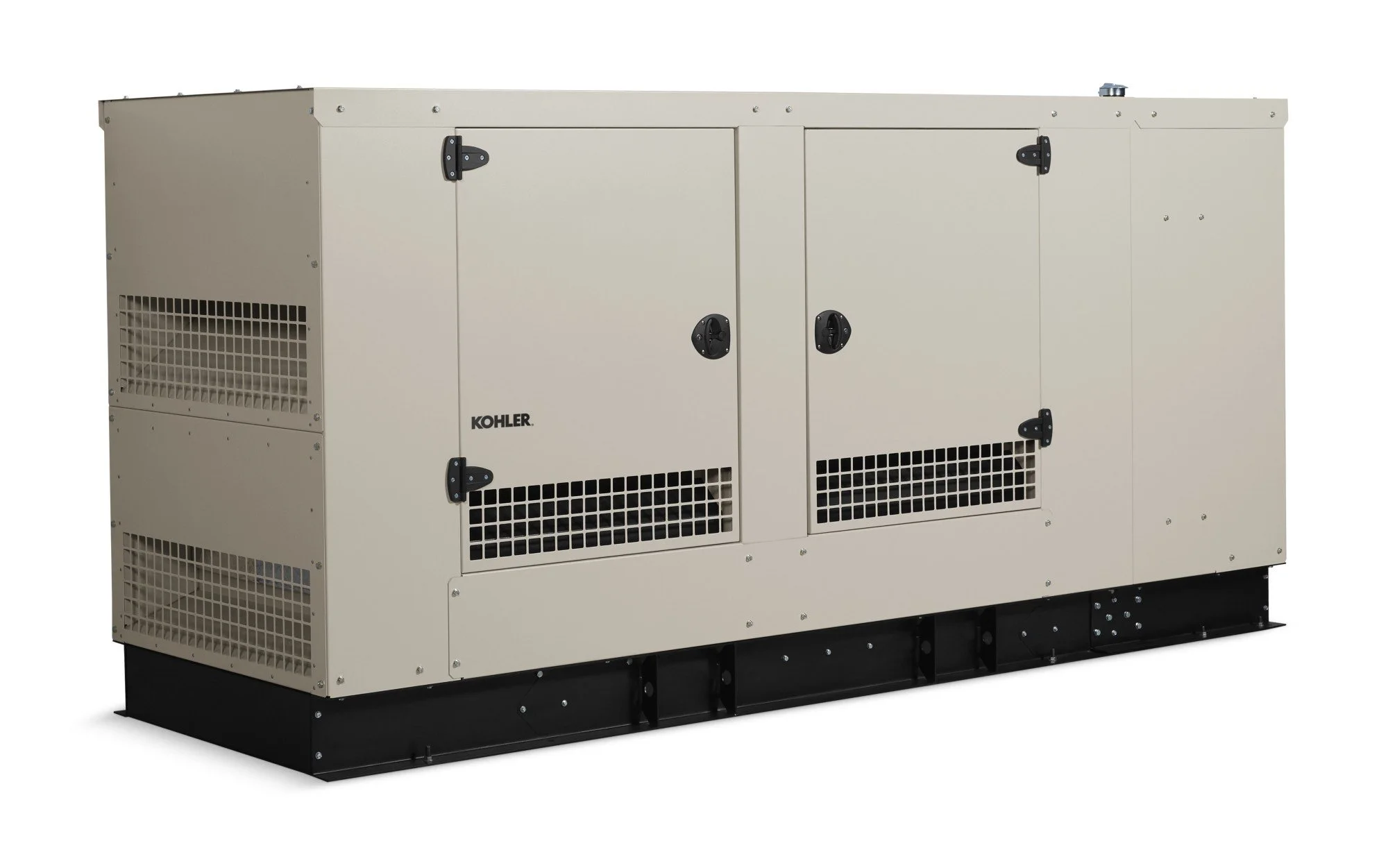

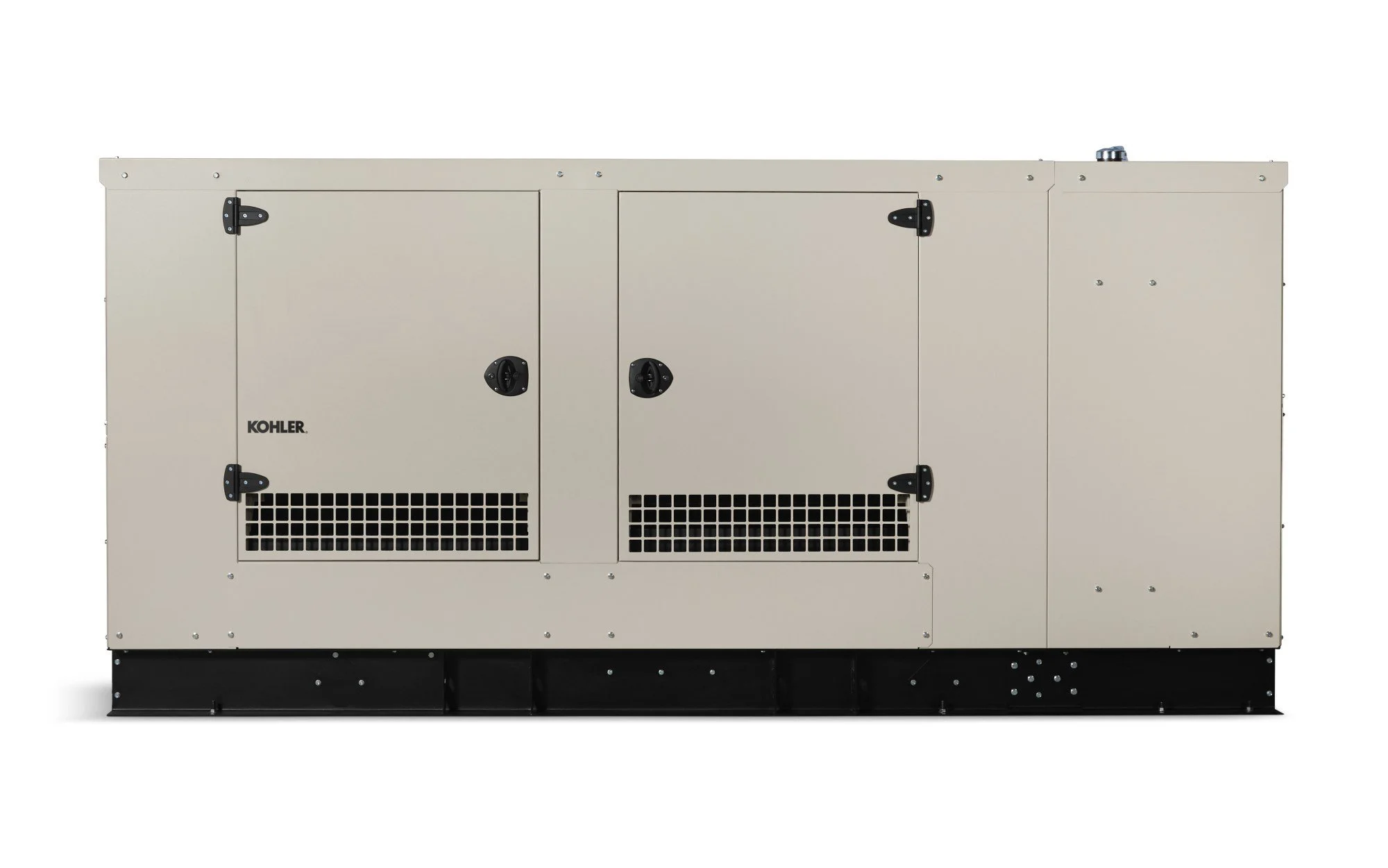

80 kW Kohler Generator for Emergency Backup Power

Model KG80R | Fuel Type Natural Gas & LPG

Built to weather the storm, these natural gas and liquid propane generators deliver industrial-grade performance right to your home or business. When a utility failure or severe weather hits, they keep your home comfortable and your business powered.

Our generators feature commercial-grade engines tested for 2,000 hours of continuous operation and extreme conditions. Their enclosures are designed to endure winds up to 181 MPH, ensuring resilience and durability.
Rated kW LP: 80 kW
Rated kW NG: 80 kW
Amps LP: 334 amps
Amps NG: 334 amps
Peak Motor Starting kVA @240 V: 237 kVa
Alternator Note: All information shown is for 1 Phase 60 Hz generator with the largest alternator option available.
Displacement: 6.2 L (378 cu. In.)
Horsepower: NG 126 HP, LP 127 HP
Enclosure Material: AluminumSteel
Sound Output During Weekly Exercise: 68 dB(A)
Sound output During Full-speed Operation: 69 dB(A)
Response Time: 10 seconds
Warranty: Premium five-year limited warranty
Country of Origin: US
Automatic Transfer Switch Included: Sold Separately
Remote Monitor Available: Sold Separately
Off Grid / Utility backup: Utility Backup
Weight: 2948 lbs. (3146 kg)
Alternator Type: 4-Pole, Rotating Field
Fuel Consumption on NG at 50% Load? 803 cfh
Fuel Consumption on LP at 50% Load?272 cfh
Controller: APM402
Cylinder Arrangement: V-8
Dimensions: 3525 mm x 1154 mm x 1665 mm (138.8 in. x 45.4 in. x 65.5 in.)
Engine Manufacturer/Description: KOHLER
Engine Model: KG6208TA, 6.2L, Turbocharged
Engin/Alternator RPM: 1800
Fuel Type: Natural Gas | LPG
Frequency: 60 Hz
Phase: Single PhaseThree Phase
Voltage @60 Hzs: 120/240
Digital Voltage Regulation: ±0.5%
Dimensional Drawing
Enclosure Diagram
Operation Manual Engine
Operation Manual Generator
Specs
Spec Sheet Controller
Installation Manual
Wiring Diagram

Call To Order Now

Information about a premium warranty, including coverage details for travel miles, parts warranty, and battery coverage.

Learn more

Crafted for Excellence

Our generators offer a superior experience from day one and for years to come. Our durable design ensures your generator lasts longer, operates more quietly, and starts more efficiently under higher loads than competing models.

Call To Order Now

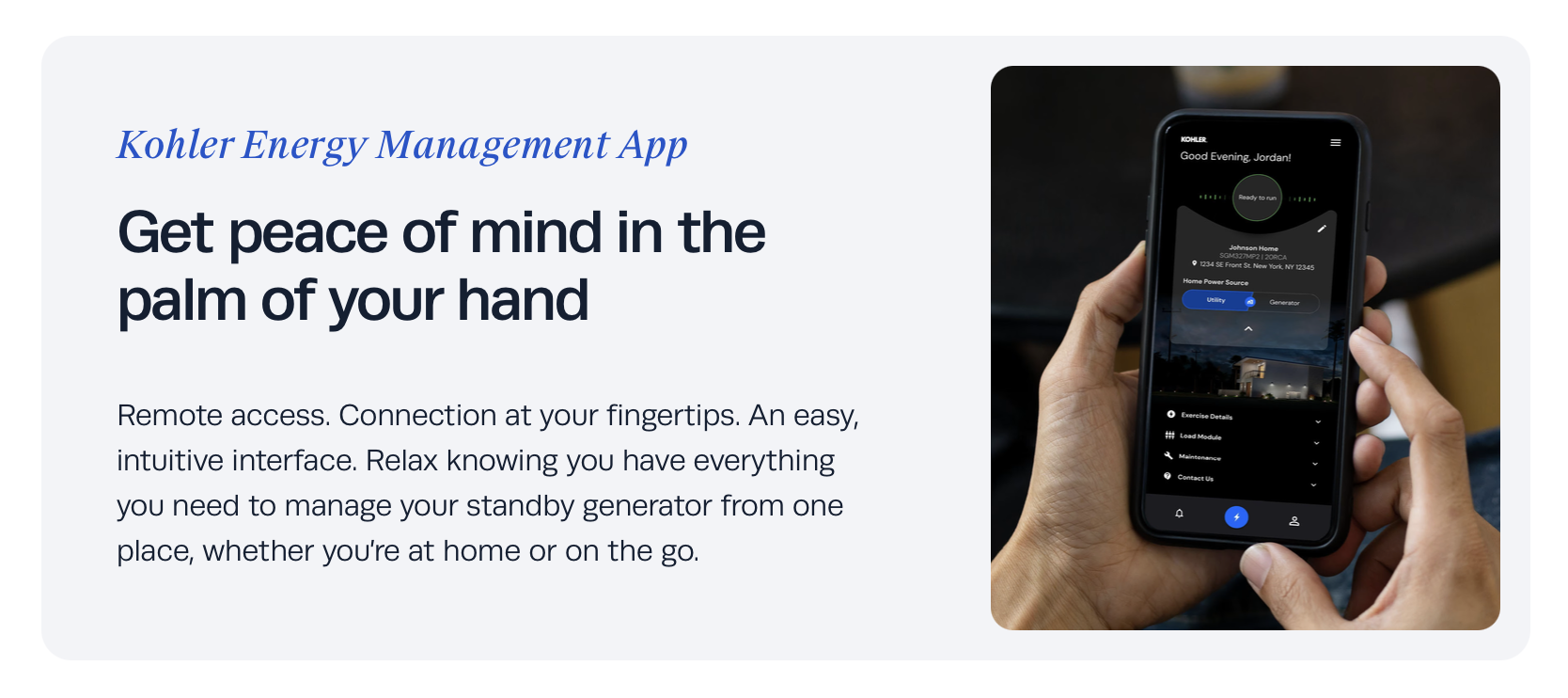

Smartphone displaying the Kohler Energy Management App, showing home power source options and control features, held by a person's hands.

FAQ

- We offer a 6kW-150kW range of power.
- Ideal for backing up your home if there is a black or brown out.
- Your generator will automatically start and restore power in seconds.
- Receive power to critical hard-wired systems.
- No need to worry about refueling. You’ll pick either a natural gas generator (NG) or a liquid propane gas generator (LPG) based on your home.
- Have high-quality power delivered simultaneously. Our generators won’t harm your electronics.
- Our generators come in over 10 colors, match your generator to fit your style.
Meet the brains behind your home generator. The ATS is always monitoring your home’s power.
During an outage, it automatically transfers power from the utility to your generator. The ATS restores your home power to the utility grid and turns off your backup power when the main power comes back on.
A home generator plus installation can start at $6000. Your total cost will vary based on your installation and power needs. When shopping for standby generators, your checklist should include generator installation, costs, accessories and permits. No need to worry, your KOHLER dealer will handle all the details, so you don’t have to.
Power outages can be expensive. Extreme weather is the leading cause of power outages in the United States. Over the last ten years, power outages have become more severe. We’ve seen more frequent and longer-lasting blackouts, which can cause loss of time and money.
These surges have caused damage to properties and homes. This has resulted in physical, emotional, and financial difficulties for many Americans.
Home insurance rates may be lower. Insurance companies may offer lower rates for homes well-protected against theft, flooding, and severe weather. Your backup power keeps the lights on, the security system working, and the sump pump running smoothly. This provides peace of mind for both you and your insurer.
- Registration is completed by Butler Mobility
- Generator is eligible for extended warranty purchase
- Warranty start date goes by the date registered/day of start up by Butler Mobility
- As an authorized installer/dealer, we are trained and certified on proper installation requirements
Watch this video to hear from Ed Del Grande, a home improvement expert who explains the installation process in more detail.
