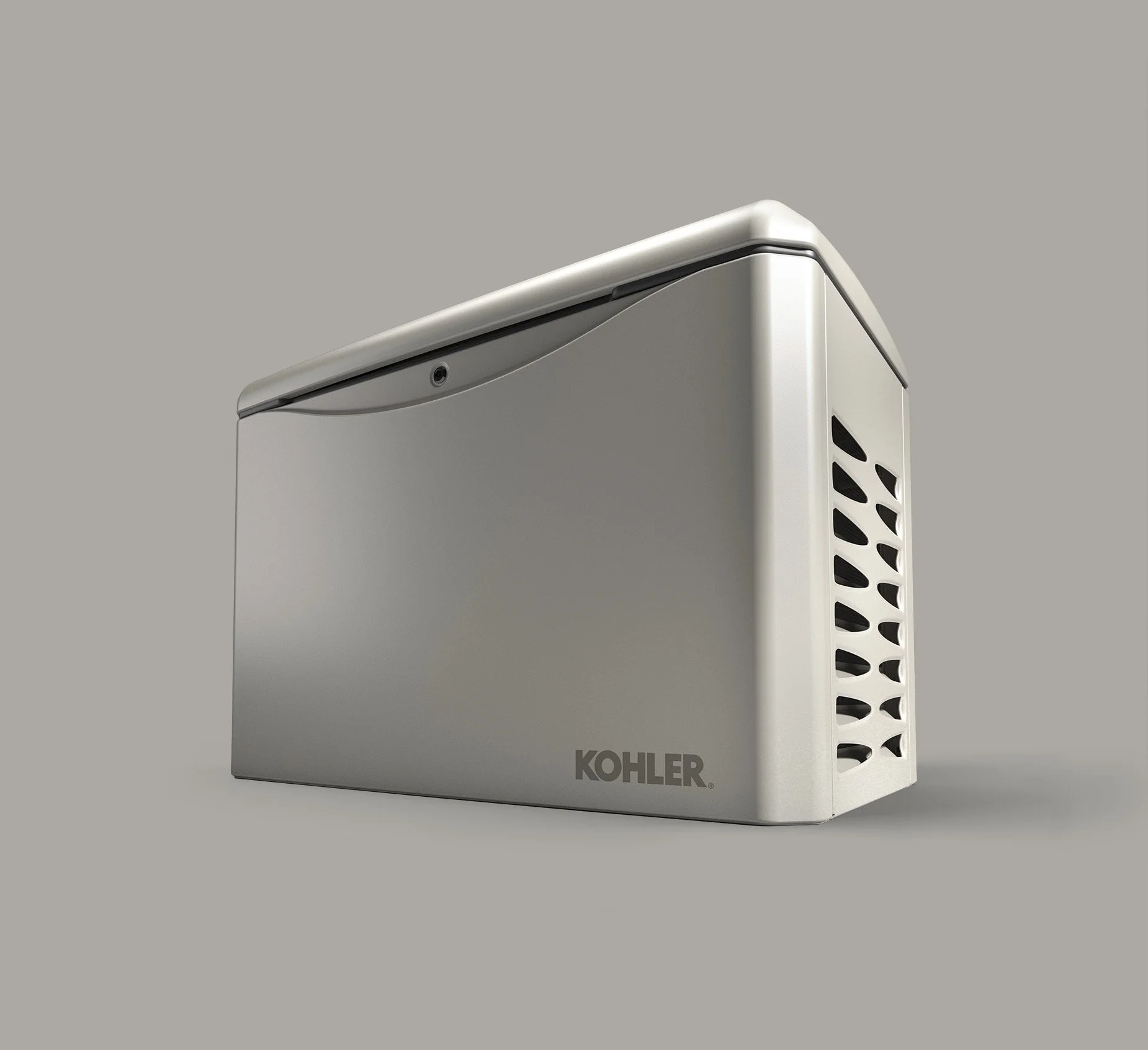

20 kW Kohler Generator for Emergency Backup Power

Model 20RCA | Fuel Type Natural Gas & LPG

Our most popular standby home generator, which operates at a quiet 63dB. Our generators deliver award-winning reliability and performance when it matters most. Built to keep you out of the dark. Now available in 3 phase.

Explore Color Options

Our generators feature commercial-grade engines tested for 2,000 hours of continuous operation and extreme conditions. Their enclosures are designed to endure winds up to 181 MPH, ensuring resilience and durability.
Rated kW LP: 20 kW
Rated kW NG: 18 kW
Amps LP: 83 amps
Amps NG: 75 amps
Peak Motor Starting kVA @240 V: 41 kVa
Alternator Note: All information shown is for 1 Phase 60 Hz generator with the largest alternator option available.
Displacement: 999 cm³ (61 cu. in.)
Horsepower: NG 27.1 HP, LP 30.9 HP
Enclosure Material: Aluminum
Sound Output During Weekly Exercise: 64 dB(A)
Sound output During Full-speed Operation: 69 dB(A)
Response Time: 10 seconds
Warranty: Premium five-year limited warranty
Country of Origin: US
Automatic Transfer Switch Included: Sold Separately
Remote Monitor Available: Included
Off Grid / Utility backup: Utility Backup
Weight: 555 lbs. (252 kg)
Alternator Type: 2-Pole, Rotating Field
Fuel Consumption on NG at 50% Load? 161 cfh
Fuel Consumption on LP at 50% Load? 82 cfh
Controller: RDC2 Controller
Cylinder Arrangement: V-2
Dimensions: 47 in. x 26.2 in. x 32.2 in. (1193 mm x 666 mm x 817 mm)
Engine Manufacturer/Description: KOHLER
Engine Model: CH1000
Engin/Alternator RPM: 3600
Fuel Type: Natural Gas | LPG
Frequency: 60 Hz
Phase: Single PhaseThree Phase
Voltage @60 Hzs: 120/240|277/480
Digital Voltage Regulation: ±1.0%
Dimensional Drawing
Operation Manual
Service Parts
Specs
Installation Manual
App

Call To Order Now

Information about a vehicle's premium warranty, including coverage for 200 miles for dealer travel, a 5-year parts warranty, and battery coverage.

Learn more

Interior view of a Kohler home generator

Crafted for Excellence

Our generators offer a superior experience from day one and for years to come. Our durable design ensures your generator lasts longer, operates more quietly, and starts more efficiently under higher loads than competing models.

Call To Order Now

A person holding a smartphone displaying the Kohler Energy Management app interface, showing energy control options and a landscape background.

FAQ

- We offer a 6kW-150kW range of power.
- Ideal for backing up your home if there is a black or brown out.
- Your generator will automatically start and restore power in seconds.
- Receive power to critical hard-wired systems.
- No need to worry about refueling. You’ll pick either a natural gas generator (NG) or a liquid propane gas generator (LPG) based on your home.
- Have high-quality power delivered simultaneously. Our generators won’t harm your electronics.
- Our generators come in over 10 colors, match your generator to fit your style.
Meet the brains behind your home generator. The ATS is always monitoring your home’s power.
During an outage, it automatically transfers power from the utility to your generator. The ATS restores your home power to the utility grid and turns off your backup power when the main power comes back on.
A home generator plus installation can start at $6000. Your total cost will vary based on your installation and power needs. When shopping for standby generators, your checklist should include generator installation, costs, accessories and permits. No need to worry, your KOHLER dealer will handle all the details, so you don’t have to.
Power outages can be expensive. Extreme weather is the leading cause of power outages in the United States. Over the last ten years, power outages have become more severe. We’ve seen more frequent and longer-lasting blackouts, which can cause loss of time and money.
These surges have caused damage to properties and homes. This has resulted in physical, emotional, and financial difficulties for many Americans.
Home insurance rates may be lower. Insurance companies may offer lower rates for homes well-protected against theft, flooding, and severe weather. Your backup power keeps the lights on, the security system working, and the sump pump running smoothly. This provides peace of mind for both you and your insurer.
- Registration is completed by Butler Mobility
- Generator is eligible for extended warranty purchase
- Warranty start date goes by the date registered/day of start up by Butler Mobility
- As an authorized installer/dealer, we are trained and certified on proper installation requirements
Watch this video to hear from Ed Del Grande, a home improvement expert who explains the installation process in more detail.
