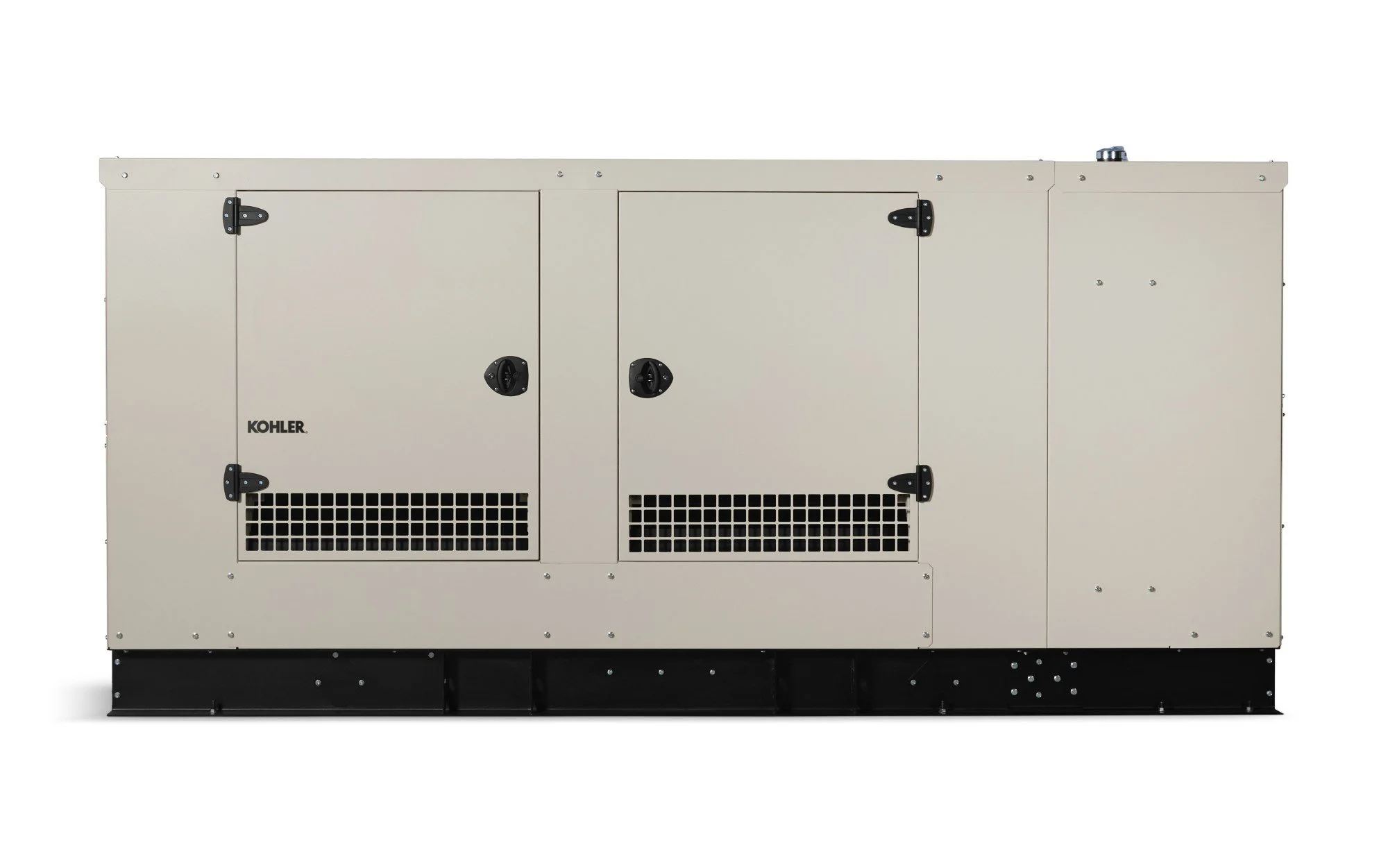

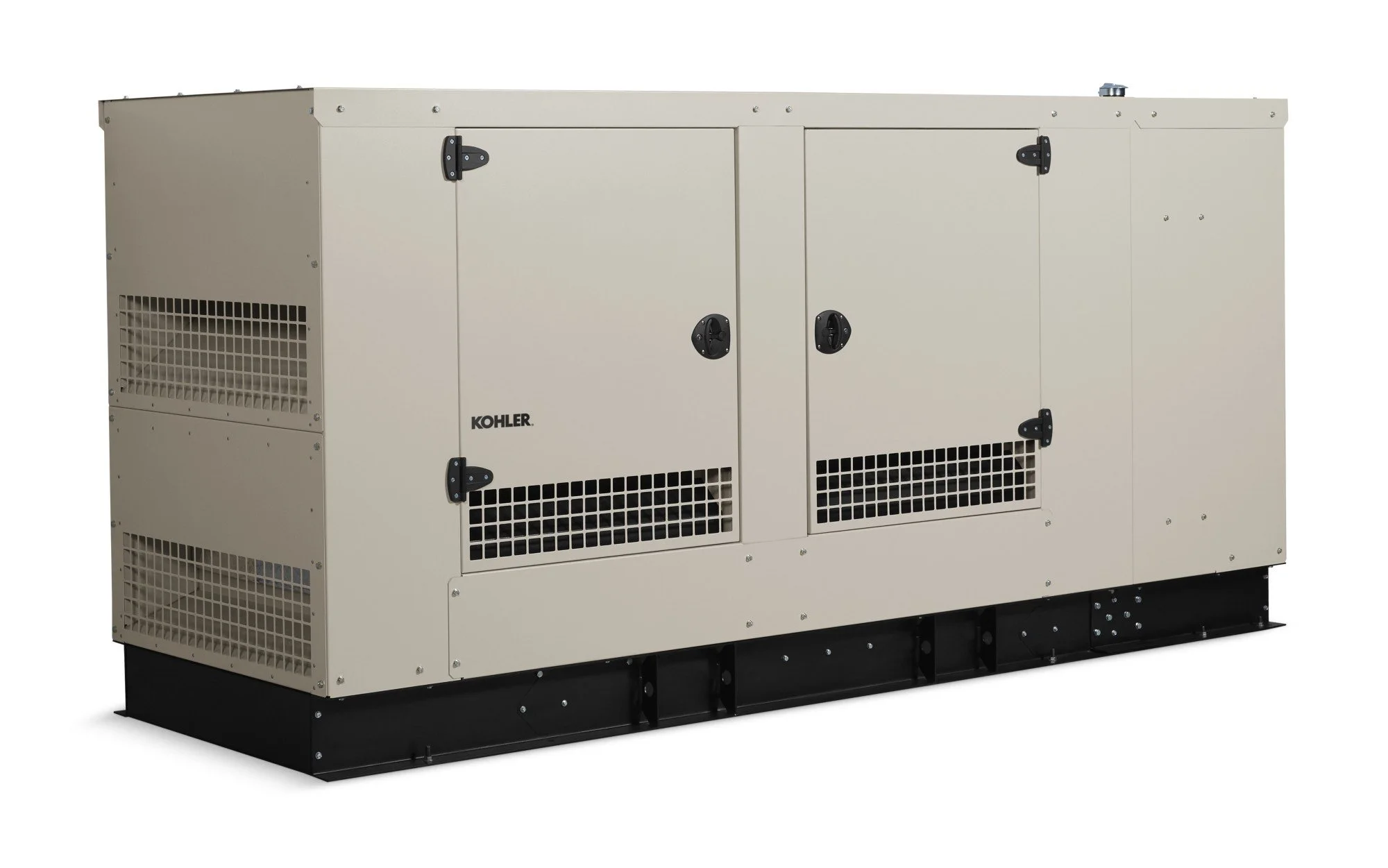

125 kW Kohler Generator for Emergency Backup Power

Model KG125R | Fuel Type Natural Gas & LPG

Built to weather the storm, our KG125R KOHLER® natural gas and liquid propane generators deliver industrial-grade performance right to your home or business. When a utility failure hits, they keep your home comfortable and your business powered.

Our generators feature commercial-grade engines tested for 2,000 hours of continuous operation and extreme conditions. Their enclosures are designed to endure winds up to 181 MPH, ensuring resilience and durability.
Rated kW LP: 105 kW
Rated kW NG: 125 kW
Amps LP: 438 amps
Amps NG: 521 amps
Peak Motor Starting kVA @240 V: 440 kVa
Alternator Note: All information shown is for 1 Phase 60 Hz generator with the largest alternator option available.
Displacement: 6.2 L (378 cu. In.)
Horsepower: NG 202 HP, LP 175 HP
Enclosure Material: Aluminum Steel
Sound Output During Weekly Exercise: 71 dB(A)
Sound output During Full-speed Operation: 71 dB(A)
Response Time: 10 seconds
Warranty: Premium five-year limited warranty
Country of Origin: US
Automatic Transfer Switch Included: Sold Separately
Remote Monitor Available: Sold Separately
Off Grid / Utility backup: Utility Backup
Weight: 3340 lbs. (3562 kg)
Alternator Type: 4-Pole, Rotating Field
Fuel Consumption on NG at 50% Load? 1084 cfh
Fuel Consumption on LP at 50% Load?388 cfh
Controller: APM402
Cylinder Arrangement: V-8
Dimensions: 138.8 in. x 45.4 in. x 65.5 in. (3525 mm x 1154 mm x 1665 mm)
Engine Manufacturer/Description: KOHLER
Engine Model: KG6208TAHD, 6.2L, Turbocharged
Engin/Alternator RPM: 1800
Fuel Type: Natural Gas | LPG
Frequency: 60 Hz
Phase: Single PhaseThree Phase
Voltage @60 Hzs: 120/240
Digital Voltage Regulation: ±0.5%
Dimensional Drawing
Enclosure Diagram
Engine Operation Manual
Generator Operation Manual
Specs

Call To Order Now

An informational graphic titled 'Premium Warranty' with three sections. The first section has an icon of a car with a check mark, stating the dealer travels 200 miles for service, with competition covering 100 miles. The second section shows gear icons, indicating a 5-year parts warranty, with competition covering 3 years. The third section features a battery icon, noting battery coverage included, whereas competition doesn't cover batteries.

Learn more

A compact, futuristic-looking computer or electronic device with a transparent front panel showing glowing blue internal components, sitting on a desk against a modern interior background.

Crafted for Excellence

Our generators offer a superior experience from day one and for years to come. Our durable design ensures your generator lasts longer, operates more quietly, and starts more efficiently under higher loads than competing models.

Call To Order Now

A person holding a smartphone displaying the Kohler Energy Management App interface, with options for managing home energy sources, including utility and generator, and showing a house image.

FAQ

- We offer a 6kW-150kW range of power.
- Ideal for backing up your home if there is a black or brown out.
- Your generator will automatically start and restore power in seconds.
- Receive power to critical hard-wired systems.
- No need to worry about refueling. You’ll pick either a natural gas generator (NG) or a liquid propane gas generator (LPG) based on your home.
- Have high-quality power delivered simultaneously. Our generators won’t harm your electronics.
- Our generators come in over 10 colors, match your generator to fit your style.
Meet the brains behind your home generator. The ATS is always monitoring your home’s power.
During an outage, it automatically transfers power from the utility to your generator. The ATS restores your home power to the utility grid and turns off your backup power when the main power comes back on.
A home generator plus installation can start at $6000. Your total cost will vary based on your installation and power needs. When shopping for standby generators, your checklist should include generator installation, costs, accessories and permits. No need to worry, your KOHLER dealer will handle all the details, so you don’t have to.
Power outages can be expensive. Extreme weather is the leading cause of power outages in the United States. Over the last ten years, power outages have become more severe. We’ve seen more frequent and longer-lasting blackouts, which can cause loss of time and money.
These surges have caused damage to properties and homes. This has resulted in physical, emotional, and financial difficulties for many Americans.
Home insurance rates may be lower. Insurance companies may offer lower rates for homes well-protected against theft, flooding, and severe weather. Your backup power keeps the lights on, the security system working, and the sump pump running smoothly. This provides peace of mind for both you and your insurer.
